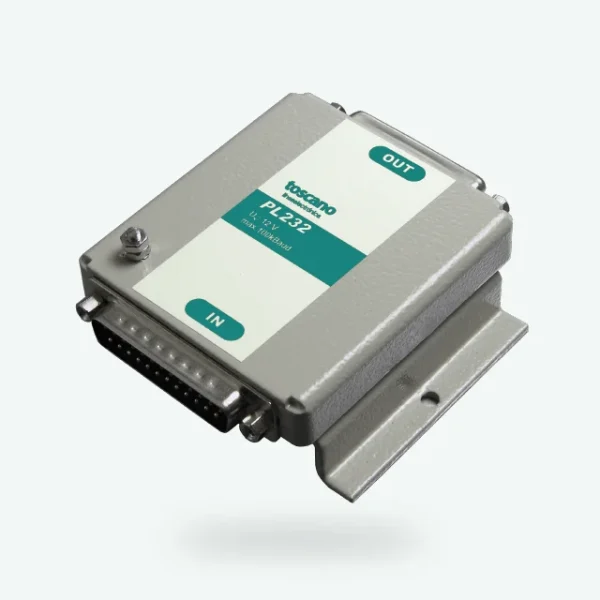

Transient, Class III, RS232, 1A
Transient Surge Protector, for signal lines with RS-232 serial port.
It is installed as close as possible to the equipment to be protected.
This content is restricted.
You need to be logged in to download the manuals.
CODE | REFERENCE |
10002492 | PL232 – 15VDC, 1A |
SPECIFICATIONS | VALORES |
Rated voltage Un | 12 VDC |
Maximum voltage Uc | 15 VDC |
Protection level Up | 22 V |
Maximum discharge intensity (8/20μs) Imax | 5 kA |
Rated current (8/20μs) In | 1 A |
Overvoltage response time | 1 ns |
Input/output connection | DB-25 |
Dimensions (W x H x D) mm | 70 x 25 x 90 |
Mounting | Aéreo |
Product standards | IEC 61643-21 |
Clase | III |
Degree of protection | IP20 |
This equipment DOES NOT PROTECT against PERMANENTpower surges.
