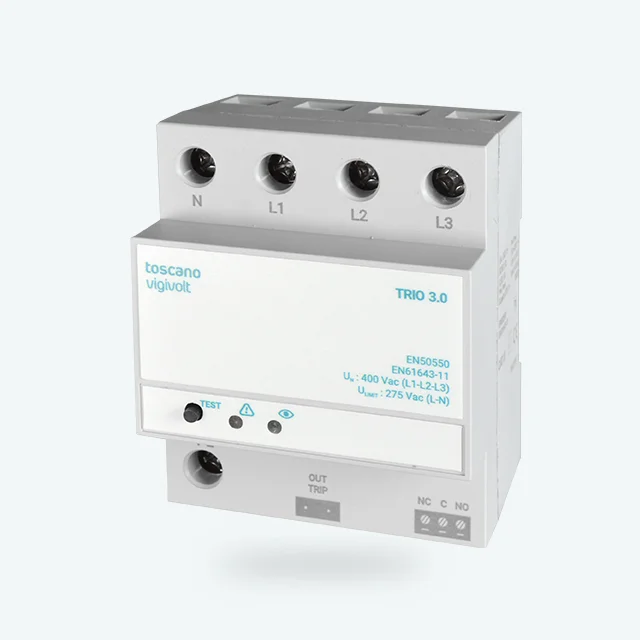

Transient and permanent surge protector. For three-phase lines. 400VAC power supply. Can be associated with maximum/emission coil 240VAC or contactor.
Protector against permanent overvoltages caused by increases in mains voltage, and against transient overvoltages caused by lightning strikes or mains switching, in three-phase installations, which can be associated with any IGA or molded case on the market.
This content is restricted.
You need to be logged in to download the manuals.
CODE | REFERENCE |
10003308 | TRIO 3.0 – Trans. SPD 40kA + perm. POP 3P+N 400Vac, universal connection / universal connection |
SPECIFICATIONS | VALORES |
Operating voltage | 240 VAC (N/L1, N/L2, N/L3) |
Frequency | 50-60 Hz |
Power consumption | 0,6 VA |
Alarm contact | 6A / 30VDC, 6A / 250VAC |
Maximum terminal cross-section | 25 mm² (N, L1, L2, L3, PE) 4 mm² (control) |
Dimensions (W x H x D) mm | 72 x 90 x 71 |
Environmental margins | -20º…+70º C / 80% H.R. |
Protection | IP20 |
Mounting | Rail DIN35 |
No. of DIN modules | 4 |
Product standards | UNE-EN 63052/50550 / UNE-EN 61643-11 / IEC-63052:2019 |
Trigger Voltage and Response | according to standard UNE-EN 50550/63052 / IEC-63052:2019 |
Maximum Imax intensity (8/20) | 40 kA |
Protection level Up | ≤1,5 kV |
Tipo | 2 |
