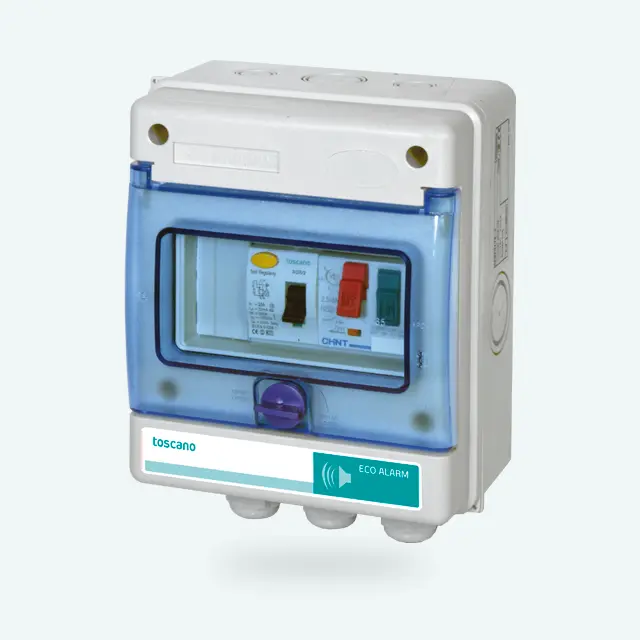

Control and protection panel for 1 single-phase pump with direct start float. Illuminated buzzer 90dB Thermal protection by motor circuit breaker. 30 mA differential protection. 90 dB buzzer
Cuadro de mando y protección para 1 bomba monofásica con flotador de arranque directo. Zumbador luminoso 90dB Thermal protection by motor circuit breaker. 30 mA differential protection. 90 dB buzzer
| SPECIFICATIONS | VALUE |
| Supply voltage | Mono 230 V AC - 50/60 Hz |
| Network protection | Two-pole earth leakage circuit breaker 25A, 30mA |
| Control voltage (float) | 230 V AC - 5 A maximum |
| Alarm buzzer | 230 V AC - 80 dB |
| Overload protection setting | 2,5...4 A / 4...6,3 A / 6,3...10 A |
| Max. connection capacity | 4 mm² (power) 2.5 mm2 (control) |
| PE configuration | 3xM20 |
| Degree of protection | IP54 |
| Operating temperature | -10...+55 ºC |
| Dimensions (WxDxH) | 170x200x115 mm |
| Approximate net weight | 1,4 kg |
| CODES | REFERENCES |
| 10004970 | ECO-ALARM-2,5 |
| 10004078 | ECO-ALARM-4 |
| 10002695 | ECO-ALARM-6,3 |
| 10004971 | ECO-ALARM-10 |
