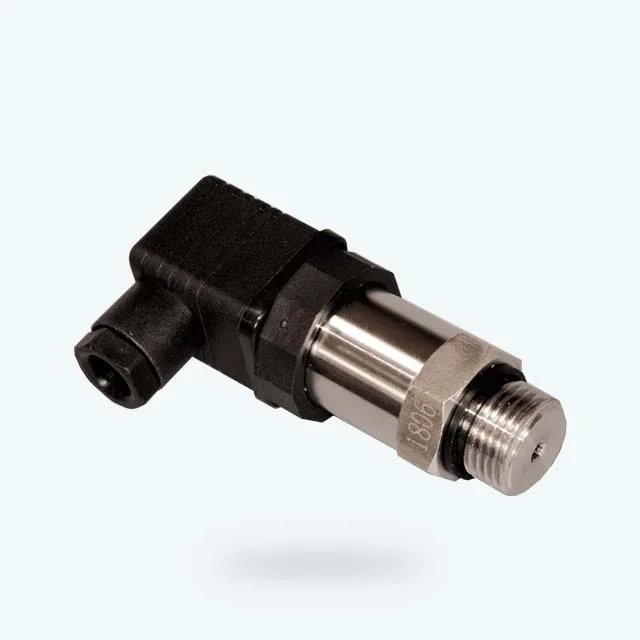

Pressure transducer for clean water. 4-20mA signal
This content is restricted.
You need to be logged in to download the manuals.
CODES | REFERENCES |
10003493 | TSP-10-1/2 |
10003492 | TSP-10-1/4 |
10003494 | TSP-16-1/2 |
10003495 | TSP-25-1/2 |
SPECIFICATIONS | VALUE |
Pressure ranges | TSP-10 : 0...10 Bar // TSP-16 : 0...16 Bar // TSP-25 : 0...25 Bar |
Overload pressure | 1,5xFS |
Output signal | 4...20 mA |
Feeding | 10...30 VDC |
Accuracy | ± 0,5% FS |
Response time | < 4 ms |
Body | Inox. (AISI 304) |
Diaphragm | Ceramic |
Sensor | Piezoresistive |
Temperature compensation | 0 ...+70 ºC |
Vibration | 10 g (20...2000Hz) |
Impact resistance | 100 g (10 ms) |
Connection | G 1/2" Except for model TSP-10-1/4: G 1/4". |
Connector | DIN 43650 |
Fluid temperature | -20...+85 ºC |
Ambient temperature | -40...+125 ºC |
Weight | 175 g |
Protection | IP65 |
