UT2

UT2

Request a quote

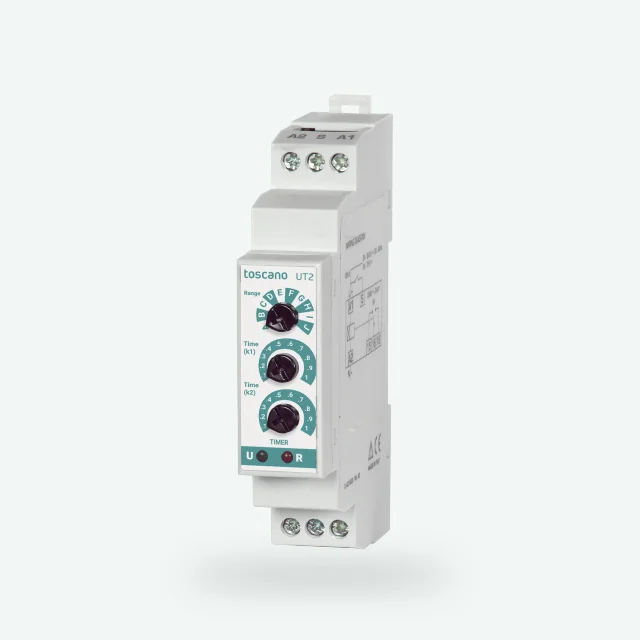

Asymmetrical cyclic timer relay. Adjustable from 0.2 seconds to 20 hours. Power supply 24…240VAC / 24…75VDC. DIN rail mounting.

Request a quote

Description

Asymmetrical timer relay (0.2s…20h) and multi-voltage (24…240Vac / 24…75Vdc), single 18 mm wide module for DIN rail mounting.

  • Supply voltage: 24…75 VDC / 24…240 VAC
  • Frequency range: 47…63 Hz
  • Power consumption: 2.6 W
  • Power supply reset: 200 ms
  • Time range: 0,2 s … 20 h
  • Time deviation: ±5%.
  • Repeatability: ±0.2% of the adjusted value
  • Rise time: 150 ms
  • Electrical insulation: 4 kV
  • 8 A, 250 VAC / 24 VDC relay output
  • Working temperature: -10º…+50º C
  • Indication: Power supply (green) / Relay (red)
  • Grado de protección: IP20
  • Weight: 65 g
  • Dimensions: 98 x 17,5 x 64 mm

Downloads

(ES) Manual de usuario - UT2 - ED2.pdf Download
(EN) User manual - UT2 - ED2.pdf Download

Technical Specifications

SPECIFICATIONS VALUE
Feeding 24...75 VDC / 24...240 VAC
Frequency range 47...63 Hz
Power consumption 2,6 W
Signage Power supply and relay
Adjustment range 0,2 s ... 20 h
Temporal deviation ±5%
Relay output 8 A, 250 VAC / 24 VDC
Dimensions (mm) / weight 98 x 17,5 x 64 / 65 g

Codes and references

CODES REFERENCES
10002502 UT2
