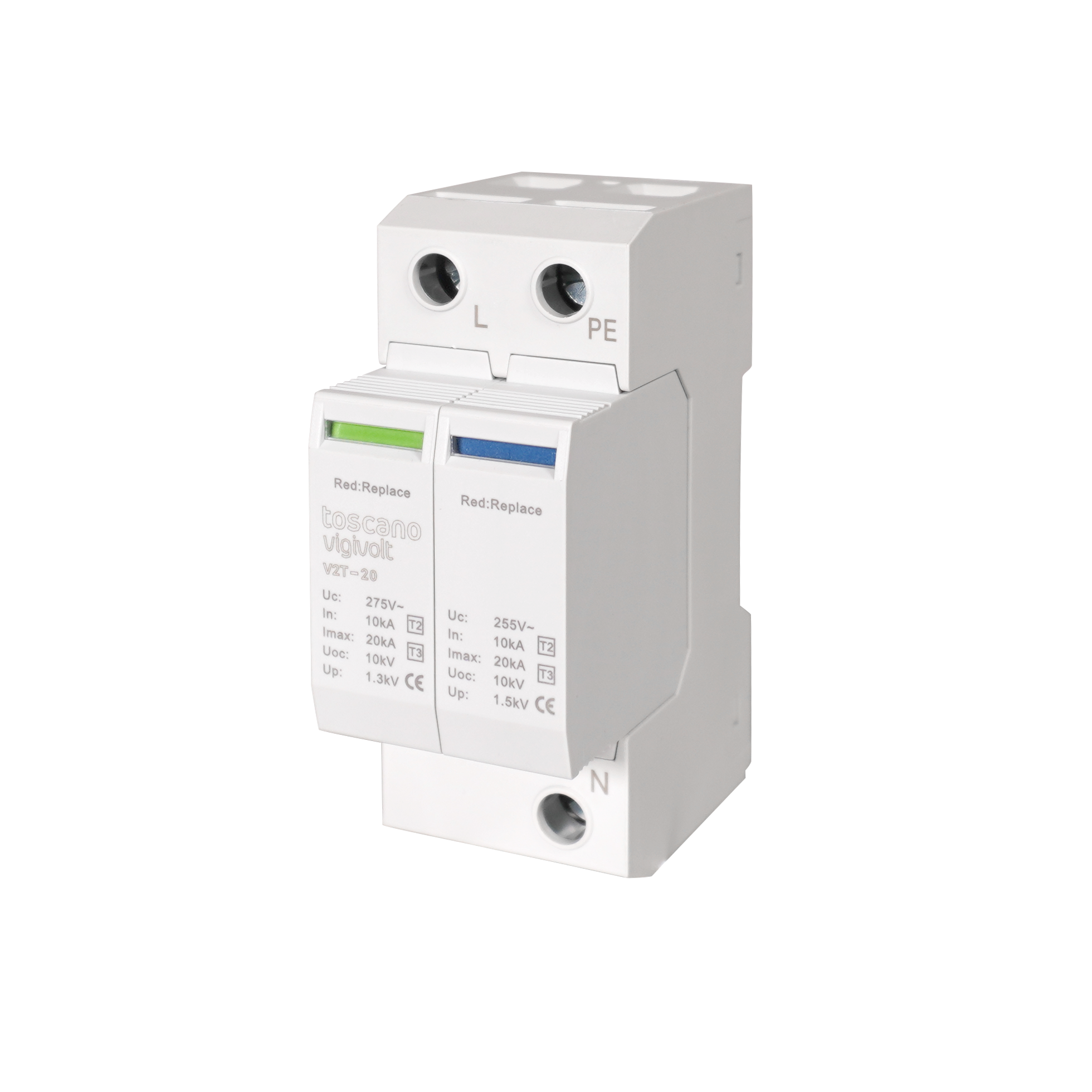

For single-phase switchboards. Type 2+3 protection. I max = 20kA
Description
For switchboards. Type 2+3 protection. I max = 20kA
Technical Specifications
| Maximum voltage Uc | 275VAC (L/N) |
| Level of protection Up | ≤1,3kV (N/PE) ≤1,5kV (L/N) |
| Maximum discharge current (8/20µs) Imax | 20kA |
| Nominal discharge current (8/20µs) In | 10kA |
| Combined waveform (1.2/50µs) Uoc | 10kV |
| Overvoltage response time | ≤25ns (L/N) ≤100ns (N/PE) |
| Pre-protection fuse | 63A gG |
| Maximum cable cross-section at terminals | 35 mm2 |
| Temperature ranges | -40º +80ºC |
| Protection degree | IP20 |
| Number of DIN modules | 2 |
| Assembly | DIN 35 rail |
| Type | 2+3 |
| Directives | 2014-35-UE (LVD)2014-30-UE (EMC)2011-65-UE (RoHS) |
Codes and references
| CODES | REFERENCES |
| 10005100 | V2T-20 |
